GPO iotHub TPCB control board — specification
Technical parameters, dimensional drawings and the connection diagram of the GPO iotHub TPCB control board for electric heater integration.
Key facts
- The GPO iotHub TPCB board measures 120 × 40 mm with a 1.6 mm PCB and an assembled height of up to 29 mm.
- The board is powered by 230 V AC and switches heating loads up to 3 kW with a silent triac.
- The radio module is an Espressif ESP32-SOLO-1 with Wi-Fi 802.11 b/g/n at 2.4 GHz and Bluetooth Low Energy.
- The board has inputs for two temperature sensors: room air and heater surface.
- A built-in real-time clock with a CR2032 backup battery keeps schedules running through power cuts and switches daylight saving time automatically.

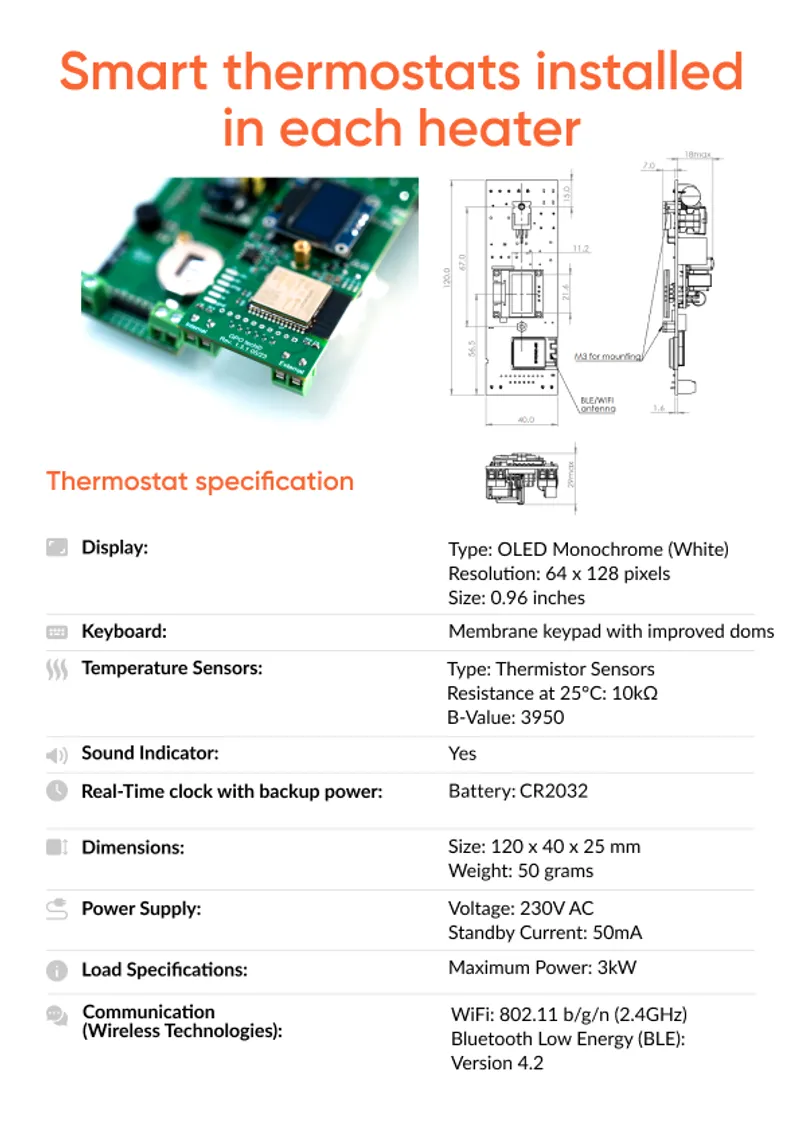

Technical parameters
| Parameter | Value |
|---|---|
| Board dimensions | 120 × 40 mm |
| Assembled height | ≤ 29 mm |
| PCB thickness | 1.6 mm |
| Mounting | M3 |
| Antenna | BLE/Wi-Fi, on-board |
| Power supply | 230 V AC nominal (70–260 V AC) |
| Load | 3 kW max (50–3000 W, resistive) |
| Switching element | Triac, 15 A max — silent, no relay click |
| Radio module | Espressif ESP32-SOLO-1, Wi-Fi 802.11 b/g/n 2.4 GHz + BLE |
| Temperature sensors | 2 × external NTC (β 3950, 10 kΩ @ 25 °C) |
| Display | 0.96″ OLED, 64 × 128, monochrome |
| Keypad connector | 2×3 or 5×1 |
| Operating temperature range | −20 … +60 °C |
| Galvanic isolation | Low-voltage side fully isolated |
| Maintained temperature | 0 … 35 °C (default, adjustable on request) |
| On-board menu languages | en, uk, pl, et, lv, lt, ru |
| Real-time clock | CR2032 backup battery, automatic DST |
| Firmware updates | Over the air (OTA) |
| Measurement accuracy | On request — being added |
| Hysteresis | On request — being added |
| Standby consumption | On request — being added |
| Weight | 50 g |

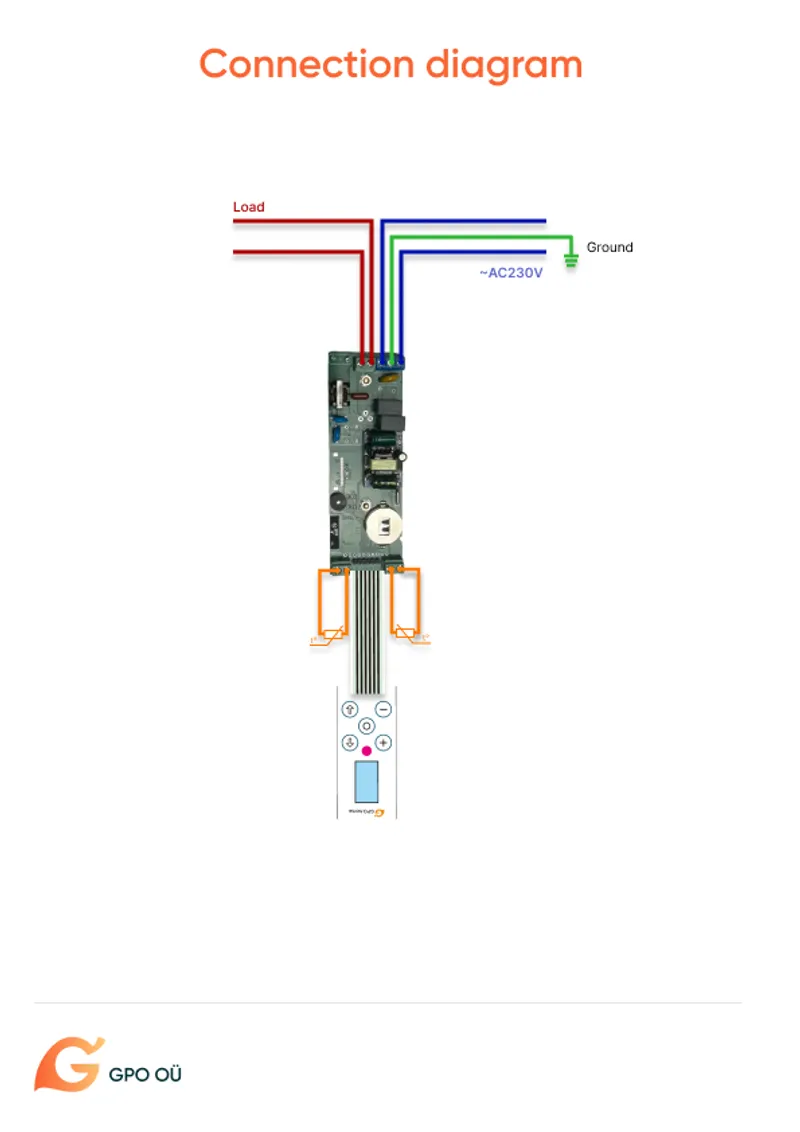

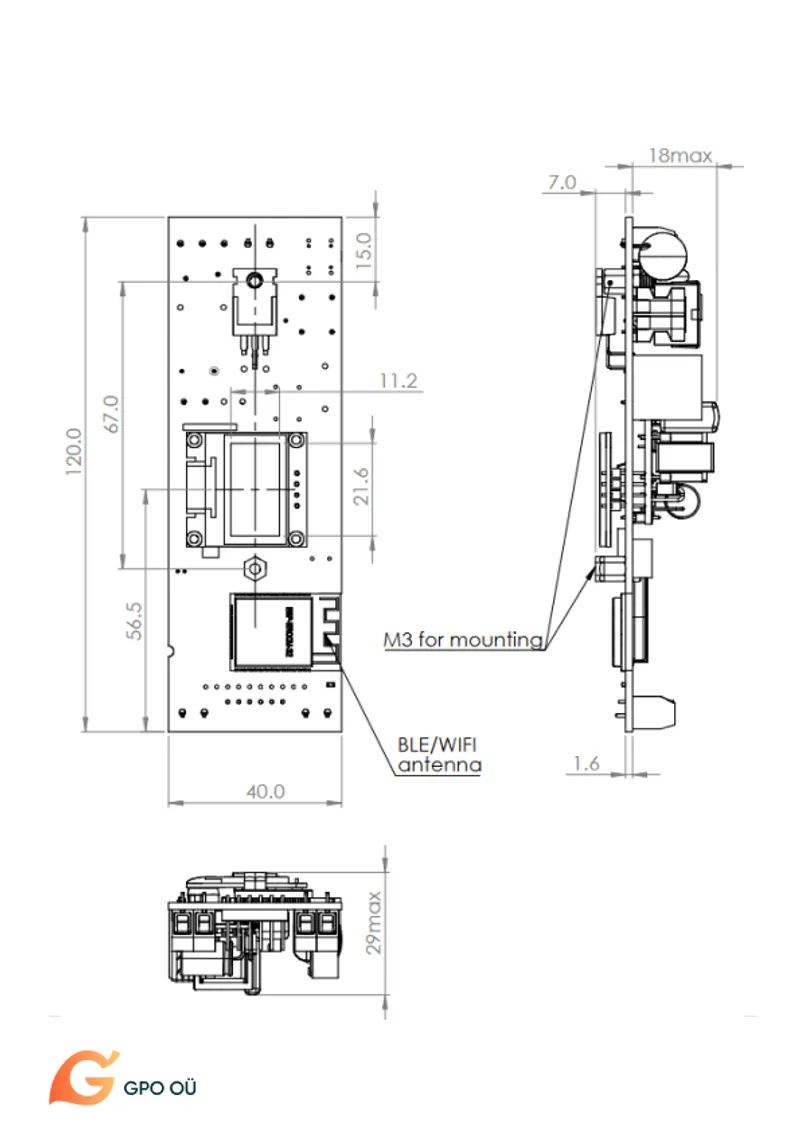

Drawings and connection diagram
